Product Introduction

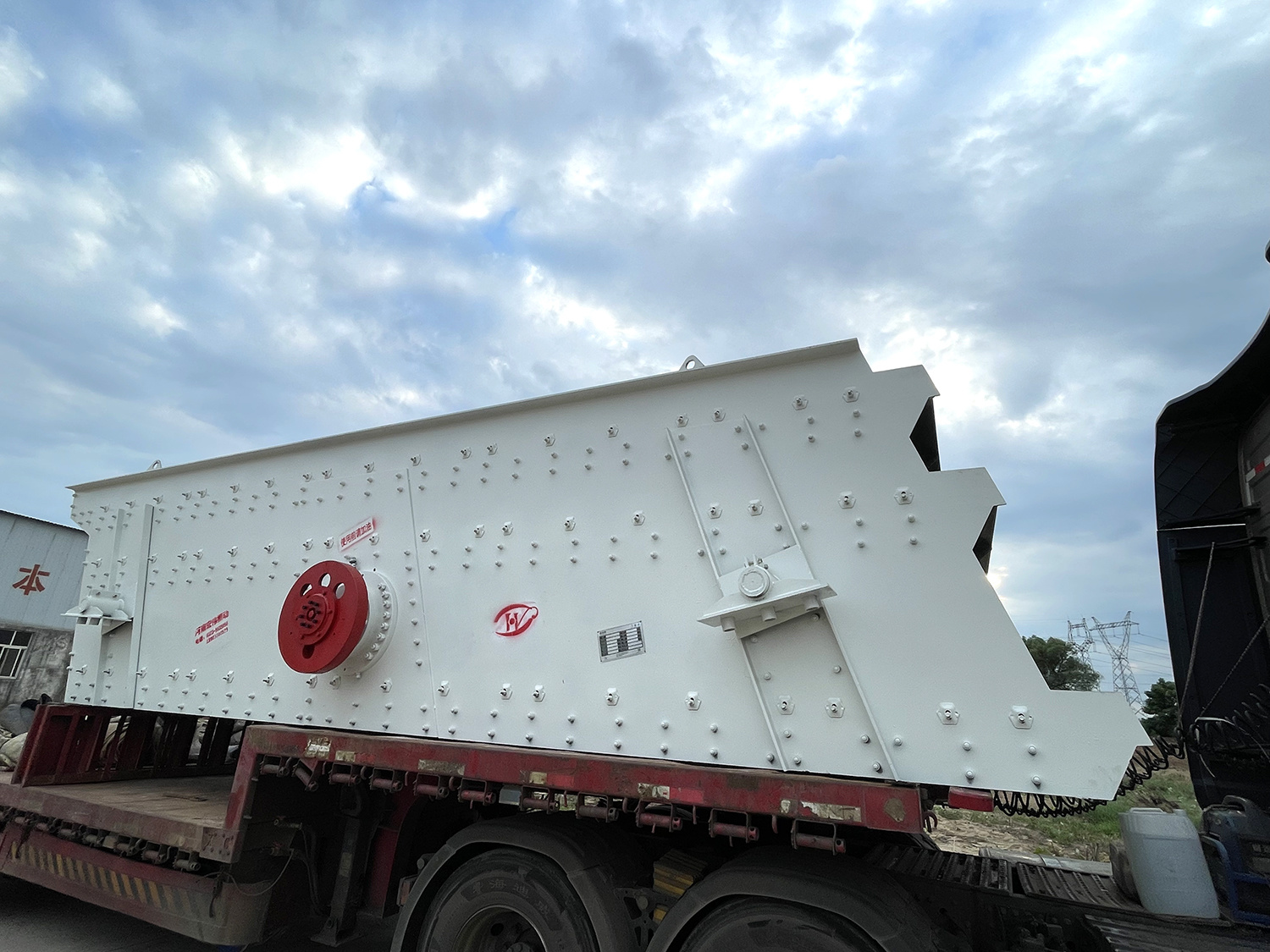

Circular vibrating screen (circular vibrating screen) performs circular motion and is a multi-layer, high-efficiency new type of vibrating screen. The circular vibrating screen adopts a cylindrical eccentric shaft exciter and a bias block to adjust the amplitude. The material screening line is long, and there are multiple screening specifications. It has the characteristics of reliable structure, strong excitation force, high screening efficiency, low vibration noise, durability, easy maintenance, and safe use. The circular vibrating screen is widely used in product grading in industries such as mining, building materials, transportation, energy, and chemical industry. According to the material product and user requirements, high manganese steel woven screen, punched screen, and polyurethane screen can be used. There are two types of screen: single-layer and multi-layer, with a maximum of four layers. Each type of screen can meet different screening requirements. This series of circular vibrating screens is seat mounted. The adjustment of the inclination angle of the screen surface can be achieved by changing the position and height of the spring support.
Product Features
(1) High processing capacity and screening efficiency.
(2) The vibrator adopts a bearing lubrication with thin oil and an external wheel eccentric structure. It has the characteristics of high excitation force, low bearing load, low temperature, and low noise. (The temperature rise of the bearing is less than 35 ° C).
(3) The vibrator is easy to disassemble, maintain, and replace as a whole, greatly reducing the maintenance cycle. (Replacing the vibrator only takes 1-2 hours).
(4) The side plate of the screening machine adopts whole plate cold work, no welding, high strength and long service life. The connection between the crossbeam and the side plate is made with high-strength bolts that resist torsion and shear, without welding, and the crossbeam is easy to replace.
(5) The screening machine adopts a composite rubber spring for vibration reduction. Compared with metal springs, it has the advantages of low noise, long service life, smooth passing through the common vibration zone, and low dynamic load on each fulcrum of the screening machine.
(6) The connection between the motor and the exciter adopts a universal joint coupling, which has the advantages of long service life and low impact on the motor.
(7) By using high-frequency vibration, the machine has high screening efficiency, maximum processing capacity, long service life, low power consumption, and low noise.Technical parameter
Model Screen specifications Number of layers Screen inclination angle (°) Sieve size (mm) Maximum feeding particle size (mm) Vibration frequency (r/min) Double amplitude (mm) Processing capacity (t/h) Power (kW) HYA1545-2 1500X4500 2 18(18-25) 2-70 200 800-900 7-12 45-380 11 HYA1545-3 1500X4500 3 18(18-25) 2-70 200 800-900 7-12 45-380 15 HYA1845-2 1800X4500 2 18(18-25) 2-70 200 800-900 7-12 60-450 15 HYA1845-3 1800X4500 3 18(18-25) 2-70 200 800-900 7-12 60-450 22 HYA1860-2 1800X6000 2 18(18-25) 2-70 200 800-900 7-10 75-600 15 HYA1860-3 1800x6000 3 18(18-25) 2-70 200 800-900 7-12 75-600 30 HYA1860-4 1800X6000 4 18(18-25) 2-70 200 800-900 7-12 75-600 37 HYA2160-2 2100X6000 2 18(18-25) 2-70 200 800-900 7-12 85-700 22 HYA2160-3 2100X6000 3 18(18-25) 2-70 200 800-900 7-12 85-700 30 HYA2160-4 2100X6000 4 18(18-25) 2-70 200 800-900 7-11 85-700 37 HYA2470-2 2400X7000 2 18(18-25) 2-70 200 800-900 7-12 100-800 22 HYA2470-3 2400X7000 3 18(18-25) 2-70 200 800-900 7-11 100-800 30 HYA2470-4 2400X7000 4 18(18-25) 2-70 200 800-900 7-10 100-800 37 HYA2770-2 2700X7000 2 18(18-25) 2-70 200 800-900 7-12 120-900 30 HYA2770-3 2700X7000 3 18(18-25) 2-70 200 800-900 7-11 120-900 37 HYA3073-2 3000X7300 2 20(20-25) 2-70 200 800-900 7-11 150-1200 37 HYA3073-3 3000X7300 3 20(20-25) 2-70 200 800-900 7-11 150-1200 37 HYA3080-2 3000X7700 2 20(20-25) 2-150 300 800-900 7-12 180-1800 22x2 HYA3080-3 3000X7700 3 20(20-25) 2-150 300 800-900 7-12 180-1800 22X2 HYA3680-2 3600X7500 2 21(20-25) 2-150 300 800-900 7-12 225-2250 22x2 HYA3680-3 3600X7500 3 20(20-25) 2-150 300 800-900 7-12 225-2250 37X2 Note: 1. The above parameters are for reference only and can be adjusted according to the customer's situation. The final quotation and technical agreement shall prevail. 2. The processing capacity of materials with the same size but different working conditions varies greatly. For details, please consult Henan Hongwei Vibration Machinery Co., Ltd.
* Customized according to customer requirements
